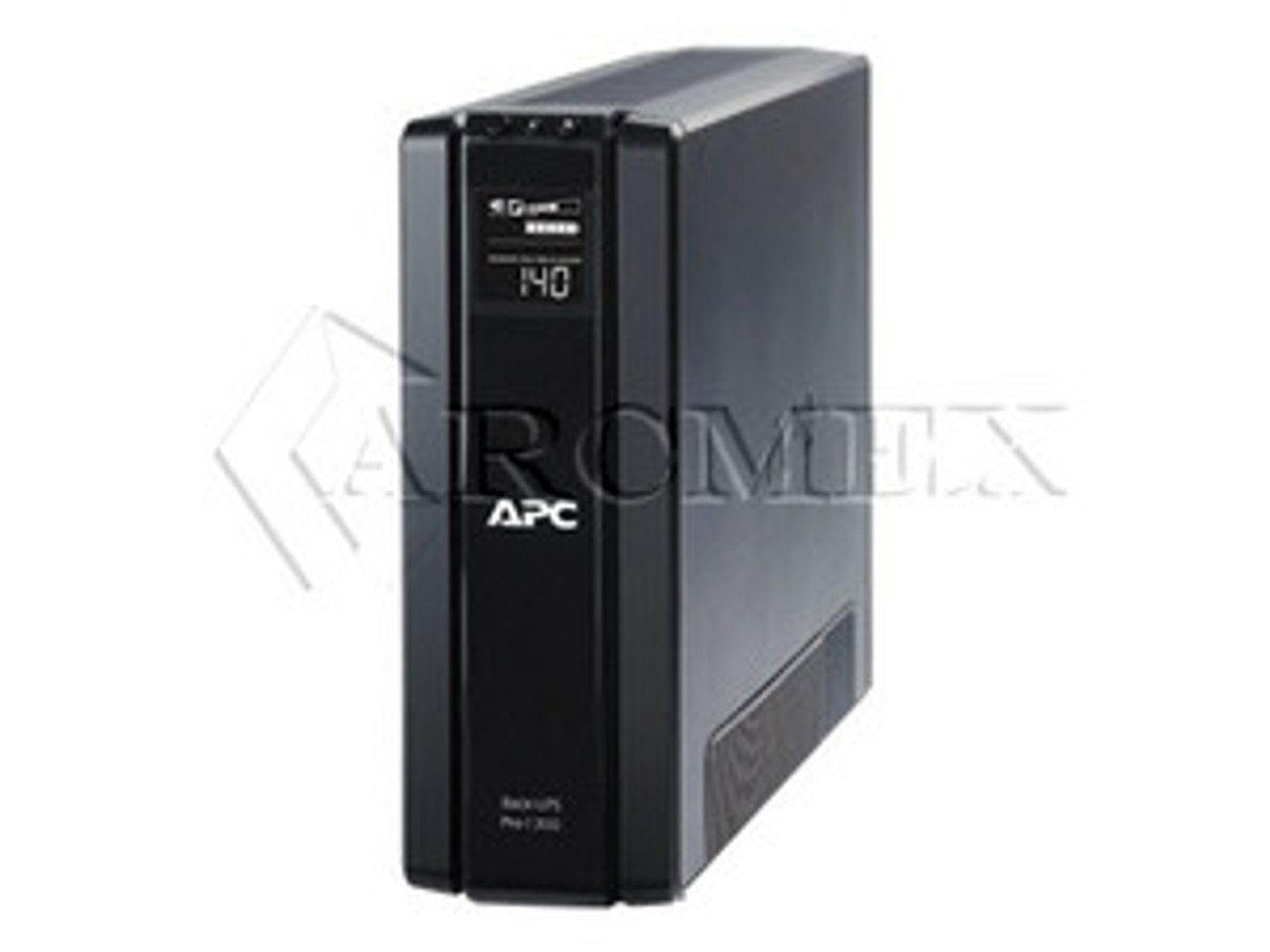

Product Description
| Output |
| Output Power Capacity |
| 780 Watts / 1300 VA |
| Nominal Output Voltage |
| 120V |
| Efficiency at Full Load |
| 87.0% |
| Output Frequency (sync to mains) |
| 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
| Waveform Type |
| Stepped approximation to a sinewave |
| Output Connections |
| (5) NEMA 5-15R (Battery Backup) |
| (5) NEMA 5-15R (Surge Protection) |
| Efficiency at Half Load |
| 86% |
|
|
| Input |
| Nominal Input Voltage |
| 120V |
| Input Frequency |
| 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections |
| NEMA 5-15P |
| Cord Length |
| 1.83 meters |
|
|
| Batteries & Runtime |
| Battery Type |
| Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Included Battery Modules |
| 1 |
| Typical recharge time |
| 8 hour(s) |
| Replacement Battery |
| APCRBC124, APCRBC124J |
| RBC™ Quantity |
| 1 |
|
|
| Communications & Management |
| Control panel |
| Multi-function LCD status and control console |
| Audible Alarm |
| Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
|
| Surge Protection and Filtering |
| Surge energy rating |
| 354 Joules |
| Filtering |
| Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous |
| Data Line Protection |
| Cable modem / Video protection, Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector) |
|
|
| Physical |
| Maximum Height |
| 301.00 mm |
| Maximum Width |
| 112.00 mm |
| Maximum Depth |
| 380.00 mm |
| Net Weight |
| 10.50 KG |
| Shipping Weight |
| 12.85 KG |
| Shipping Height |
| 387.00 mm |
| Shipping Width |
| 238.00 mm |
| Shipping Depth |
| 488.00 mm |
| Master Carton Units |
| 1.00 |
| SCC Codes |
| 1073130426876 2 |
| Units per Pallet |
| 24.00 |
